Intel® VTune™ Amplifier

Tune Algorithms

In the Source window, you identified a code line in the initialize_2D_buffer hotspot function that took the most CPU time. Focus on this line and do the following:

  1. Open the code editor.

  2. Optimize the algorithm used in this code section.

Open the Code Editor

Note

Depending on the sample code version, your source line numbers may slightly differ from the numbers provided in this tutorial.

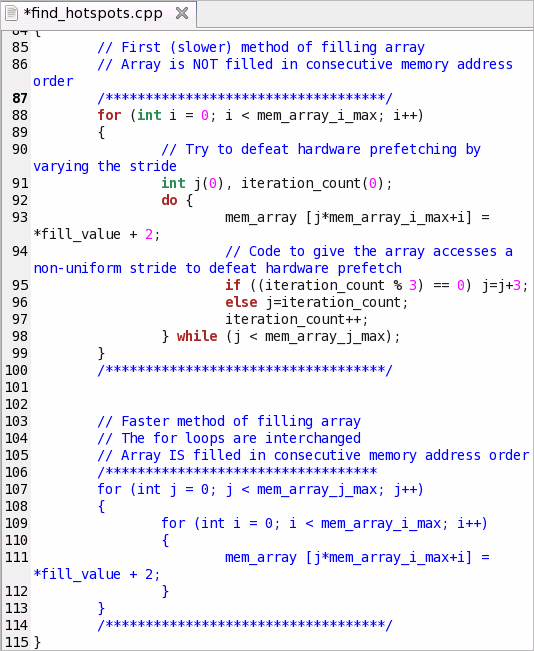

In the Source window, click the Source Editor button to open the find_hotspots.cpp file in the default code editor at the hotspot line:

Hotspot line 93 is used to initialize a memory array using non-sequential memory locations. For demonstration purposes, the code lines are commented as a slower method of filling the array.

Resolve the Problem

To resolve this issue, optimize your algorithm as follows:

  1. Edit line 87 deleting the ending forward slash (/). This action comments out code lines 88-99 marked as a "First (slower) method".

  2. Edit line 106 by adding a forward slash (/) at the end of the line. This action uncomments code lines 107-113 marked as a "Faster method".

    In this step, you interchange the for loops to initialize the code in sequential memory locations.

  3. Save the changes made in the source file.

  4. Browse to the directory you extracted the sample code (for example, /home/myuser/samples/tachyon).

  5. Rebuild your target using the make command as follows:

    $ make clean

    $ make

    The tachyon_find_hotspots application is rebuilt and stored in the tachyon directory.

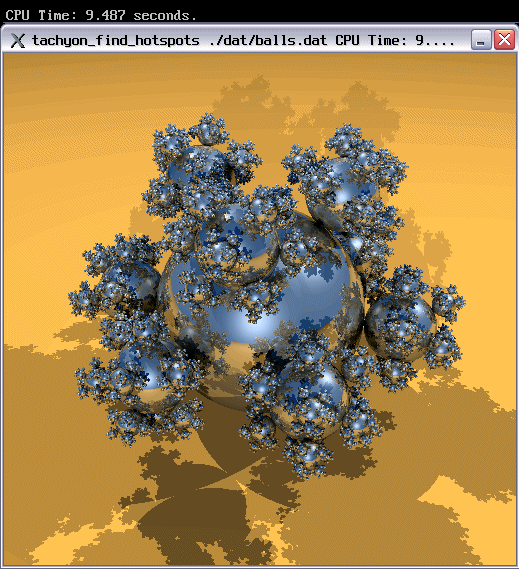

  6. Run tachyon_find_hotspots as follows:

    $ ./tachyon_find_hotspots dat/balls.dat

    System runs the tachyon_find_hotspots application. Note that execution time reduced from 16.604 seconds to 9.487 seconds.

Key Terms

Hotspot

Next Step

Compare with Previous Result
